Main function

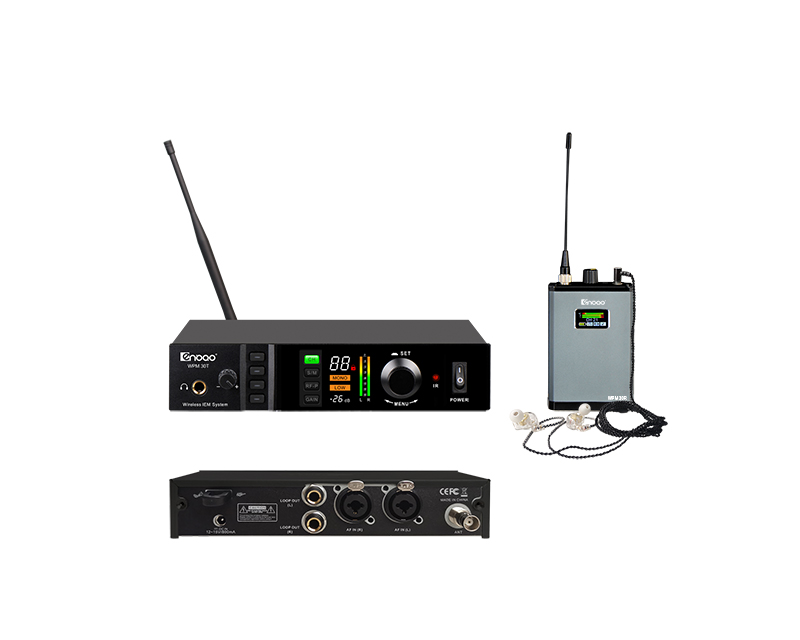

Monitoring Transmitter：

※ Adopt 24-bit digital audio processing to create excellent personal monitoring and restoration effects for each performance.

※ Adopt broadcast mode to transmit stereo dual-channel to bodypack receiver with a maximum distance of 100 meters.It also supports one transmitter for many receiver bodypacks no quantity limited .

※ Loop output interface to meet more applications.

※ Half-rack transmitter with simple front panel control.

※ Full-color LCD display, wide viewing Angle, high definition, all working conditions at a glance.

※ Built-in frequency database, can quickly change the channel on-site

※ Two transmission power can be adjusted to meet the requirements of different use distances.

※ With 41dB input level adjustment range, easily cope with various equipment signal matching.

Monitor Receiver Bodypack :

※ Earphone amplifier and line can be switched dual-mode output to achieve headphone driver and wireless audio stereo transmission.

※ With OTG interface, it can connect mobile phone and computer to have matrix live broadcast , recording and play music functions

※ Left and right channel independent output, can switch the left and right channel sound source.

※ Built-in frequency spectrum assistance module, search available channels and automatically synchronize, effectively avoid interference signals.

※ 24Bit/48K sampling rate HD digital audio technology, to achieve low distortion, large dynamic, low delay, high Stereo separation for high definition audio quality.

※ Real-time frequency automatic tracking function, change the channel without frequency matching.

※ Environmental protection battery life of 6 hours, 80 meters effective range.

※ Full-color LCD display, real-time clear display of signal, power and other working status.

Technical Specification

WPM 30T Transmitter：

Frequency range.....................550 - 960 MHZ

Audio input................................Max input +26dBu（-30 dB）

Input gain control....................41dB(0dB、-10dB、-20dB、-30dB、+11dB)

Power supply............................12-15V DC（5.5/2.1mm)

Power consumption ................15V 325 mA (Max output power 50mW)

Transmitted power.....................25mW、50mW(Optional)

Antenna connector..................50Ω BNC

Audio input connector...............600Ω impedance Cannon three-pin /6.35

                                                 three-core balanced input

Loop output...............................600Ω Ιmpedance 1:1/6.35 three core balanced output

Size...........................................205x140x43mm

Net weight.................................830g

WPM 30R  Bodypack：

Frequency range.................... 550 - 960 MHz

Receiving sensitivity............... <-93dBm

The battery............................. AA1.5V alkaline battery X2

Frequency response............... 20-20,000 Hz

Earphone amplifier output power............... 85mW (1kHz @ <1% distortion,

                                                                   average power, @8Ω)

Line output level..................... Max. 10dBu (1kHz @ <0.01% distortion, @600Ω)

Consumption......................... 3V  200mA

The OTG interface is.............. Type-C 1:1 Fixed output/data/power supply

Size...................................... 66x23x110mm

Net weight............................. 162g (without battery)

System：

Distortion.............................. < 0.01% (1KHz@0dB gain/input 0dBu)

Signal to noise ratio................ ≥ 93 dB (A)

Frequency range.................... 550 - 960 MHz

Radio frequency modulation bandwidth.............................. 2MHz

Dynamic range....................... >98 dB (A)

Stereo separation................... 68db

Maximum attenuation of left/right image............... 30dB(3dB step)

Audio sampling....................... 24 bit/48 kHz

Frequency synthesis method....................... PLL synthesizes

System delay......................... <4 ms

Frequency response range....................... 20-20,000 Hz (3dB flat)

Working distance.................... 80 meters

Preset channel....................... 28 channels
