MAIN FUNCTION：

※ Reliable 24 bit digital audio processing capability, for each performance to create excellent personal monitoring mixing effect.

※ One audio channel is sent to the bodypack receiver with the maximum distance of 50 meters, and the digital audio technology is reliable to ensure clear sound quality without noise and signal loss.

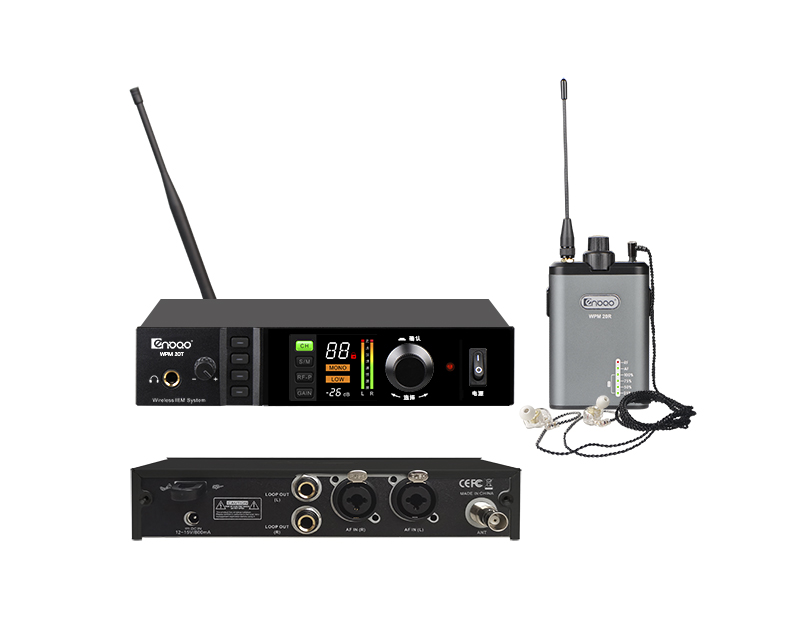

※ Half-rack size transmitter with simple front panel control function.

※ Full-color LCD display, wide view, high definition, all working state be clear  at a glance

※ The balance input and loop output of the rear panel provide full connectivity  for the audio source and other units.

SPECIFICATIONS：

TRANSMITTER

Frequency range..........................550 - 960 MHZ

Audio inpu.................................Max input +18dBu

Power supply.............................12-15 V DC

Consumptio...............................15V  300 mA

Transmitted power.....................10mW,30mW（Optional）

RECEIVER

Frequency range........................550 - 960 MHZ

Sensitivity of reception...............<-93dBm

The battery................................ AA 1.5v  x2

Frequency response...................20 - 20,000 Hz

Audio output powe......................100mW (1kHz @ <1% distortion, peak power, @16Ω)

Consumption.............................3V  200 mA

SYSTEM

Distortion................................< 0.1 %

Signal to noise ratio...................≥ 96 dB (A)

Frequency range......................550 - 960 MHZ

Bandwidth................................2MHz

Dynamic range.........................>90 dB (A)

Audio sampling........................24 bit/48 kHz

Launch system..........................PLL synthesizes

Audio response time................<7 ms

AF code....................................PT Live

Frequency response.................20 - 20,000 Hz

Use distance.............................50M
