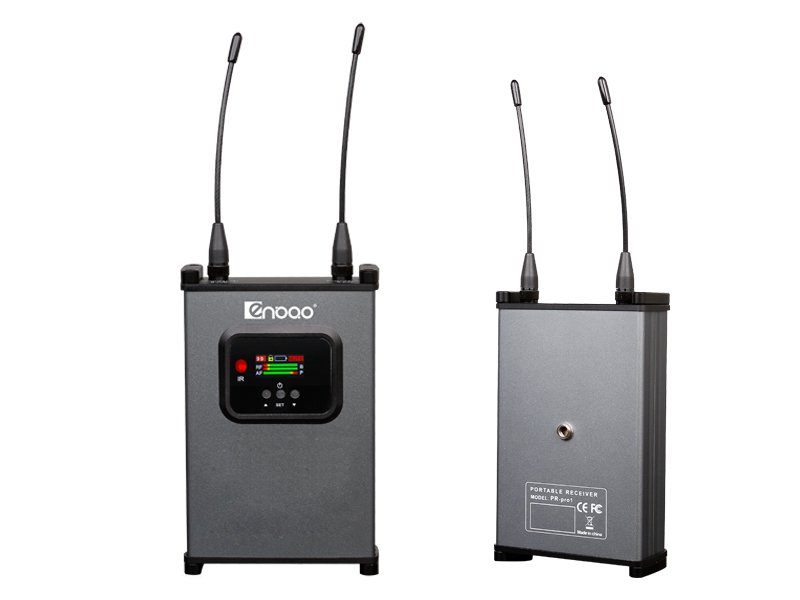

Product Introduction :

※  Full color LCD screen is adopted to display various  functional data .

※  Simple control interface, with three button to set various  functions, simple and quick operation.

※  UHF band, PLL frequency synthesis technology.

※  Infrared automatic synchronization technology, can automatically and quickly connect with the transmitter frequency.

※  Pilot noise technology can remove radio frequency interference when the transmitter is off.

※  The non-interference frequency can be set and changed,  and multiple units can work at the same time without interference with each other.

SPECIFICATIONS：

Frequency range:  470-960mhz (depending on region)

Audio Max output level:  15dbv@THD=3%(DC=7.4V  AF=1KHz)

Audio output impedance:  balance 1KΩ

Reception sensitivity:  -100 dBm/30dB sinad

Receiver principle:  secondary frequency conversion superheterodyne

image suppression:  >60dB

Spurious suppression:  >45dB

Voltage:  DC7.4V

Charging voltage:  DC5V2A

Current consumption:  150mA@DC7.4V

Antenna interface type:  SMA

Antenna interface impedance:  50 Ω

Antenna bias voltage protection:  Yes

Weight:  0.49 KG

Size:  138 x 88.7 x33 mm
