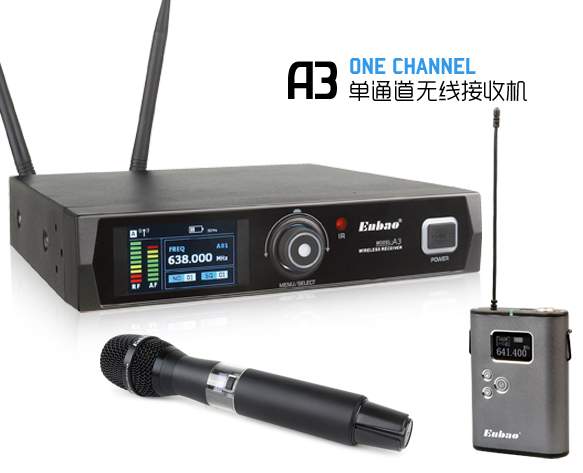

  • Name:A3 single channel wireless receiver Model:A3 Times:
    • Detail

    Features:

    1.Design for large-scale show , lecture and art and sport activities.

    2.Front-panel adopt full-color TFT display screen.

    3.Rotary button control.

    4.Pilot frequency squelch technology delete wireless RF interference when transmitter closed.

    5.Receiver display battery of transmitter.

    6.Lock function avoid wrong operation.

    7.Anti-interference frequency can be set and changed , up to 20 sets can be used in the same

    frequency range without interference.

    8.Receive signal automatically , eliminate break signal , increased receive distance and stability.

    9.UHF frequency range, PLL technology.

    10.Automatically infrared sync technology , connecting transmitter quickly.

    11.Auto Scan function scan available frequency.

    12.level receive sensitivity , adjust SQ for different environment.

    13.Handheld microphone and bodypack use OLED display screen.

    14.Metal case , elegant design.

    15.Transmitter use a pair of AA battery.


    SPECIFICATION:


    System

    Operation range:100 meters

    AF response:20Hz-18KHz

    T.H.D:<1% (@AF1 KHz, RF46 dBu)

    Dynamic range:>100dB

    S/N ratio:>90dB

    Pilot frequency:32.768KHz

    Receiver

    AF output level:Unbalanced+9dBu/Balanced +9dBu

    AF ouput impendance :Unbalanced810 Ohms/ Balanced 240 Ohms

    Sensitivity :-100dBm/30dB sinad

    Imagine rejection:>50dB

    Operation Voltage:15V

    Dimention:215*215*45(mm)

    Weight:0.95kg

    Transmitter(Handheld)

    Capsule:Dynamic

    Output Gain Range:30dB

    RF output power :10mw/30mw optional

    Battery:2*AA

    Operation time :15 hours

    Dimension :36*245(mm)

    Weight:0.28kg

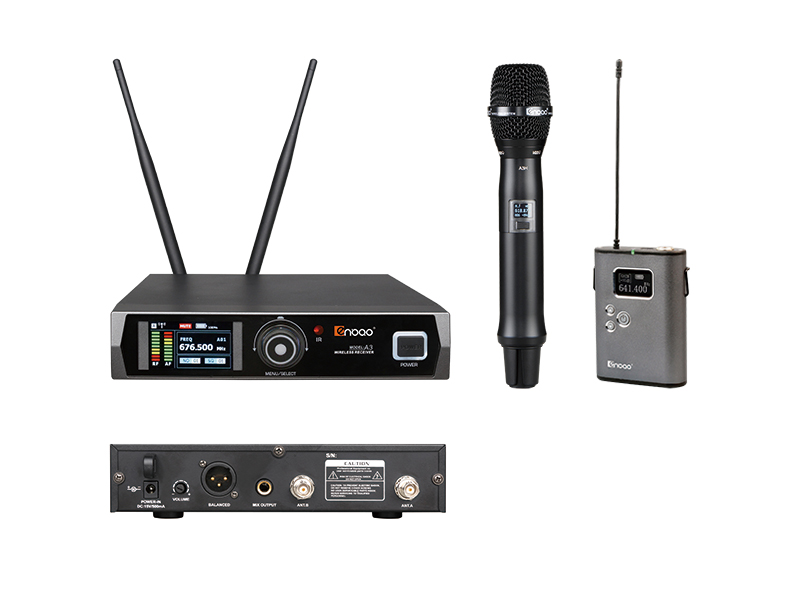

    A3 single channel wireless receiver(图1)
