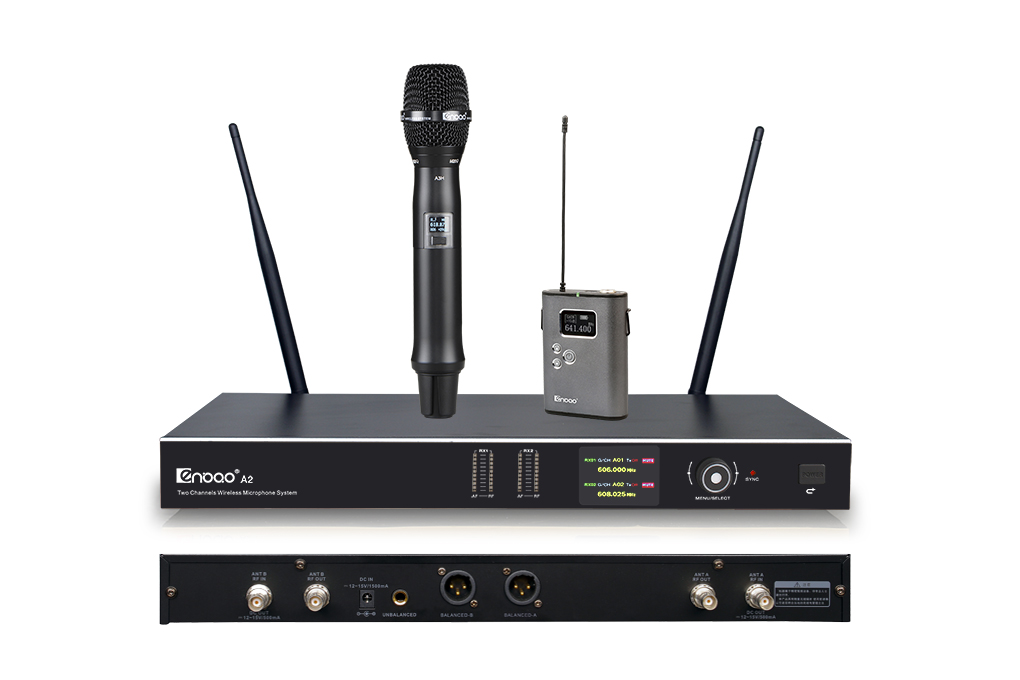

FEATURES：

1.Design for large-scale show, lecture and art and sport activities.

2.Front-panel adopt full-color TFT display screen.

3.Rotary bottom control.

4.Pilot frequency squelch technology delete wireless RF interference when transmitter closed.

5.Receiver display battery of transmitter.

6.Lock function avoid wrong operation.7.Anti-interference frequency can be set and changed, up to 20 sets can be used in the same frequency range without interference.

8.Receive signal automatically, eliminate break signal, increased receive distance and stability.

9.Optimize PLL synthesizer and microprocessor technology.

10.Auto Scan function show the frequency environment of whole frequency range which can be better to know the situation and select the good channel.

11.10 level receive sensitivity, adjust SQ for different environment.

12.Metal case, elegant design.

13.Transmitter use a pair of AA battery.

SPECIFICATION：

System

Operation range: 100 meters

AF response: 20Hz-18KHz

T.H.D.: <1% (@Af1 KHz, RF46 dBu)

Dynamic range: >100dB

S/N ratio: >90dB

Pilot frequency: 32.768KHz

Receiver

AF output level: Unbalanced+9dBu/Balanced +9dBu

AF ouput impendance: Unbalanced810 Ohms/ Balanced 240 Ohms

Sensitivity: -100dBm/30dB sinad

Imagine rejection: >50dB

Operation Voltage: 15V

Dimention: 215*215*45(mm)

Transmitter(Handheld)

Capsule: Dynamic

Output Gain Range: 30dB

RF output power: 10mw/30mw optional

Battery: 2*AA

Operation time: 15 hours

Dimension: 36*245(mm)

Transmitter(Bodypack)

Input: Mini XLR(P3)

Input impedance: 1MΩ

Output Gain Range: 30dB

RF output power: 10mw/30mw optional

Battery: 2*AA

Operation time: 15 hours

Dimension: 110*65*22(mm)
